Seismic Sundays 4 – Circuit Analysis
Analysis gone horribly wrong
We’re almost done with this stage of the project! (I think…). Admittedly, this part has taken me longer than I initially anticipated, mainly because I wanted to spend a bit of time trying to figure out what the heck was going on with the circuit (circuit analysis isn’t exactly one of my strong points…yet)
Seismic Sundays 3 – Debugging Woes

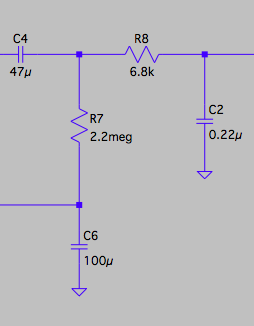

First, I have to admit that I messed up building the conditioning circuit. The first RC network after the first op-amp stage should have had a 6.8kΩ resistor. I accidentally used a 68kΩ resistor instead.
